Hubs on USB系列產品

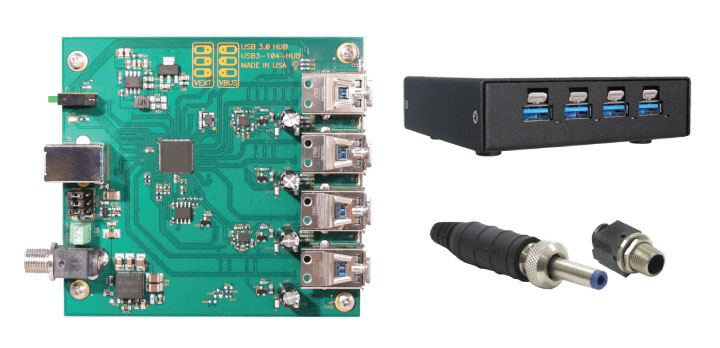

USB3-104-HUB: Rugged, Industrial Grade, 4-Port SuperSpeed USB 3.1 Hub
FEATURES

● Rugged, industrialized, four-port USB 3.1 hub

● USB 3.1 Gen 1 with data transfers up to 5Gbps (USB 2.0 and 1.1 compatible)

● Extended temperature (-40°C to +85°C) for industrial/military grade applications

● Locking upstream, downstream, and power connectors prevent accidental disconnects, perfect for USB3 Vision applications

● Turns one upstream host port into four downstream ports

● SuperSpeed (5Gbps), Hi-speed (480Mbps), Full-speed (12Mbps), and Low-speed (1.5Mbps) transfers supported

● Supports bus-powered and self-powered modes, accessible via DC power input jack or screw terminals

● LED for power, and per port RGB LEDs to indicate overcurrent fault, High-Speed, and SuperSpeed

● USB/104 form-factor for OEM embedded applications

● OEM version (board only) features PC/104 module size and mounting compatibility

● USB connectors feature industrial strength and high-retention design

● Small (4″ x 4″ x 1″), low profile, steel enclosure

● RoHS compliant

● FACTORY OPTIONS:

- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications

- Economy version equipped with standard, instead of high-retention connectors

- Wide input external power accepts from 7VDC to 28VDC at the DC power jack or screw terminals

- Tantalum capacitors for flight and space based applications

- Conformal coating

- We offer a 7-port version: USB3-HUB-7

Applications

● Military/Mission Critical

● Government

● Medical

● Industrial Automation

● Transportation/Automotive

● Embedded OEM

● Home

● Portable

● Laptop

● Security

● Education

● Laboratory

● Kiosk

ACCESSORIES

Available accessories include a wide variety of standard USB cables and mounting provisions for quick and easy-to-use, out of the box, connectivity. Mounting provisions include DIN rail and various panel mounting plates. Also, external instrument-grade power supplies are available.

SOFTWARE

No driver installation is required for the USB3C-104-HUB product. Any USB compliant operating system will automatically install it. It will enumerate as a Generic Hub which uses the USB Hub Class Driver that is built into USB compliant operating systems such as Linux (including Mac OS X) and Windows.
