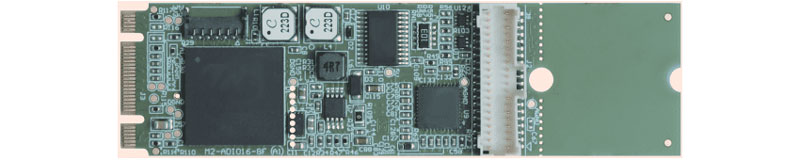

● M.2 2260/2280 “B/M” size Card with latching I/O connectors
● 16-Bit 1MSPS Complete Data Acquisition System
- Sustained Sampling Rates Up To 1MHz
- High Impedance, 8-Channel Input: 1 MΩ
- Differential Input Voltage Ranges from ±0.64V to ±24.576V
- Flexible, Software Configured Functionality
- 8 Pseudo-differential (Single-Ended) or 4 Differential Inputs
- Fast DMA transfers from 4 kSample FIFO
● Four 16-Bit Analog Outputs:
- Independently Programmable Output Ranges: 0V To 5V, 0V To 10V, ±2.5V, ±5V, ±10V
- Outputs Drive ±10Ma Guaranteed
- “FDS” model allows hardware-timed DMA+FIFO (8 kSamples) waveform streaming on up to four DACs
● 16 Digital lines with alternate functions including ADC and DAC Trigger
● RoHS Standard
● FACTORY OPTIONS:
- 4-20mA or 10-50mA ADC input ranges(Single Ended or Differential options)
- Extended Temperature Operation (-40°C to +85°C)
- Support for Wind River VxWorks (call for ordering information)
Available accessories include a variety of screw terminal boards for quick and easy connectivity as well as 2mm and 2.5mm mounting hardware. Alternately, custom hardware cables and/or interfaces can be produced to fit your specific application requirement.
The card is supported for use in most operating systems and includes a free Linux and Windows compatible software package. This package contains sample programs and source code in C#, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes the family of Windows Operating Systems including IoT. ACCES is also now offering a VxWorks driver/library for the ultimate real-time process monitoring and control solution.
