M.2模塊 模擬量輸入/輸出系列產(chǎn)品

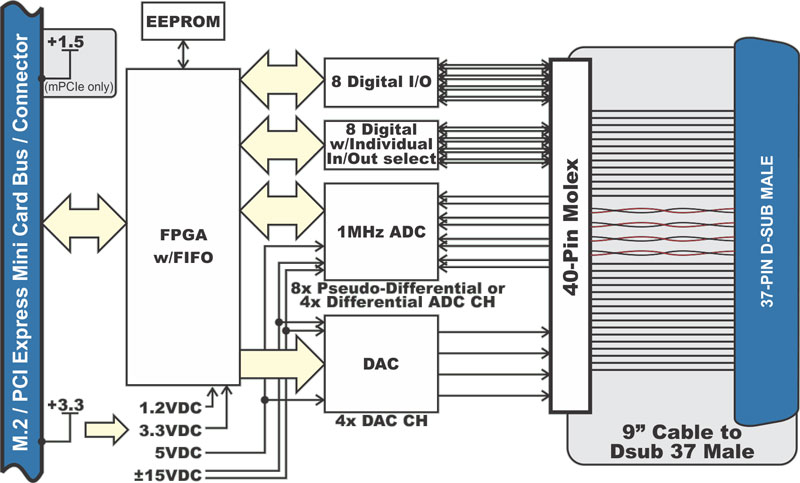

M.2-ADIO16-8F 產(chǎn)品技術規(guī)格
PC Interface

● M.2 2260/2280 with B & M key1.2

Analog Inputs

● ADC Type: Successive Approximation

● Resolution:16-bit

● Sampling Rate: 1 Msamples/second aggregate

● Number of Channels: 8 Single Ended or 4 Differential (software selectable)

● Ranges: ±12, ±10, ±5, ±2.5, ±1.25, ±0.625, ±0.3125V with 0, 0, ±5.12, ±7.68, ±8.96, ±9.60, ±9.92V common mode rejection, respectively (software selectable, per-channel)

● 4-20mA or 10-50mA: Factory Option

● Accuracy: 0.094% Full-Scale (FS) Uncalibrated, 0.0015% FS Calibrated (for best accuracy, system calibration is recommended)

● Integral Nonlinearity Error: ±0.6 LSB to ±1.5 LSB depending on gain

● No Missing Codes: 16 bits

● Input Impedance: >500MΩ

● Overvoltage Protection: Current limiting through 2 KΩ

● Crosstalk: -120dB @ 10kHz

Analog Outputs

● Number: 4

● Type: Single-Ended

● Resolution 16-bit

● Unipolar Ranges: 0-5V, 0-10V (factory option)

● Bipolar Ranges: ±2.5V, ±5V, ±10V (default)

● Conversion Rate: ≥125kHz per channel

● Settling Time: 4μs typical, 7μs max; ? to ? scale, to ±2 least-significant bits

● Output Current: ±10mA per channel

Digital Inputs/Outputs

● Lines: 16, one 8-bit I/O Group and eight 1-bit I/O Groups, each software configurable as input or output

● Input voltage:

- Logic low: 0V to 0.8V

- Logic high: 2V to 5V

● Input current: ±20μA (max

● Output voltage:

- Logic low: 0V to 0.55V

- Logic high: 2V to 5V

● Output current:

- Logic low: 64mA sink (max)

- Logic high: 32mA source (max)

● Alternate Functions: ADC Conversion Start, ADC Scan Start, ADC Trigger, ADC Gate, DAC Trigger (“LDAC”), External IRQ

Environmental

● Operating Temperature 0° to +70°C, optional -40° to +85°C

● Storage Temperature -40° to +105°C

● Humidity 5% to 95% RH, without condensation

● Power required: +3.3VDC @ 300ma (typical)

Physical

● Weight:5.8 grams (plus 22.2g for the cable)

● Size: Length:80mm with breakaway to shorten to 60mm; Width: 22mm

● I/O connector:

- On-card: Molex 501190-4017 40-pin latching

- Mating: Molex 501189-4010

Regulatory Compliance

● This product is designed to be in full compliance with CE requirements.
