● 96 or 48 High-Side Power MOSFET outputs
● Tru-Iso? I/O-to-PC 3.75kVrms opto-isolated
● 5.5” × 5.75”
● IOB-96 mates directly to USB-DIO-96-OEM
● IOB-48 mates directly to USB-DIO-48-OEM and ETH-DIO-48-OEM
● Industrial Operating Temperature (-25°C to +85°C)
● Industrial Automation
● Embedded OEM
● Portable DAQ
● Laboratory
● Home Automation
● Kiosks

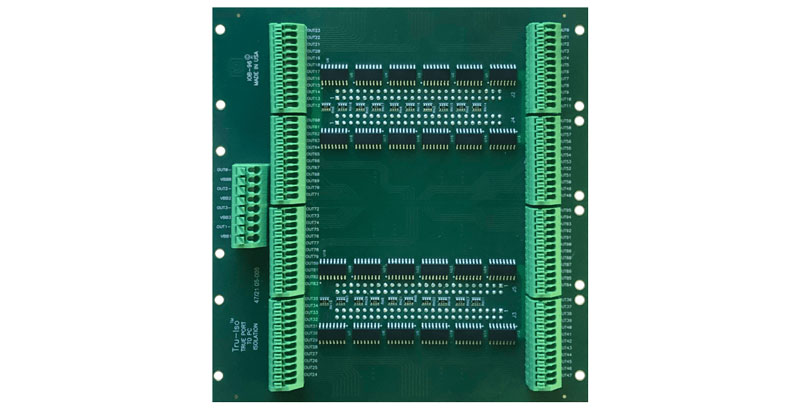

● The IOB-96 and IOB-48 optically isolated FET output accessory board is designed to add wide voltage and flexible current output signaling to existing TTL/CMOS DIO signals in a compact high-density accessory.
● Each 24-bit group has its own FET supply voltage (Vbb) and return (OUT-) terminal for flexible isolation and signal voltages.
● These cards are well suited to complex environments, mitigating otherwise challenging ground-loops, common in electrically-noisy industrial or factory locations. The broad voltage compatibility allows use in a wide range of applications.
No software is needed for this isolated FET accessory board.
