● Channels: 96 (or 48)
● Type: High Side Power MOSFET Switch.
● Protected against short-circuit, over-temp, overvoltage, overload, reverse battery, & ESD.
● Drives resistive, inductive, and capacitive loads.
● Voltage Range: 11-45VDC (customer supplied).

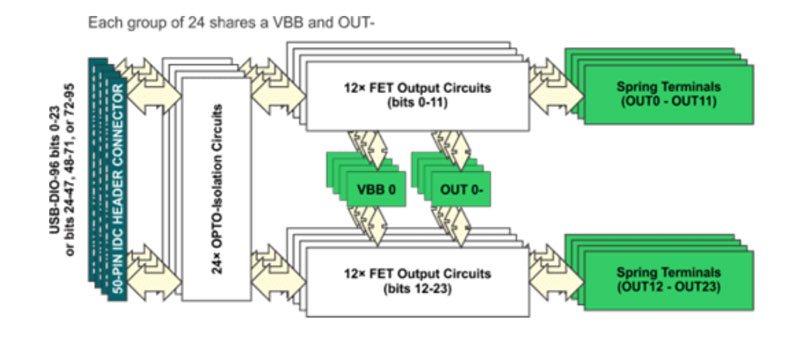

● One FET supply voltage (Vbb) and return (OUT-) per 24 FETs
● Current Rating: 0.2A maximum, each FET
● Turn On time: 50μsec (typical)
● Turn Off time: 75μsec (typical)
● Tru-Iso? I/O-to-PC: Isolation: 3.75kVrms
● Opto-isolator Per IPC-22B: 700V isolation I/O-to-Computer on all signals
● FET Outputs: Terminal Block. Phoenix Contact 1989845; 20-24AWG
● Vbb and return: Terminal Block. Phoenix Contact 1985027; 16-24AWG
● Inputs: 50-pin Female IDC headers (×4) with OPTO/GORDOS pinout
● Length: 139.7mm (5.5“)
● Width: 146.05mm (5.75“)
● Operating Temp: -25° to +85°C
● Storage Temp: -55 to +85 C
● Humidity: Maximum 90% RH, without condensation
● Power: 5V@ 450mA, typical with all FETs ON
