● PCI Express Mini Card: Type F1 “Full Length” V1.2
● Connector:
- I/O: Hirose DF57 6-pin, latching
- Mating: Hirose DF57H-6S-1.2C

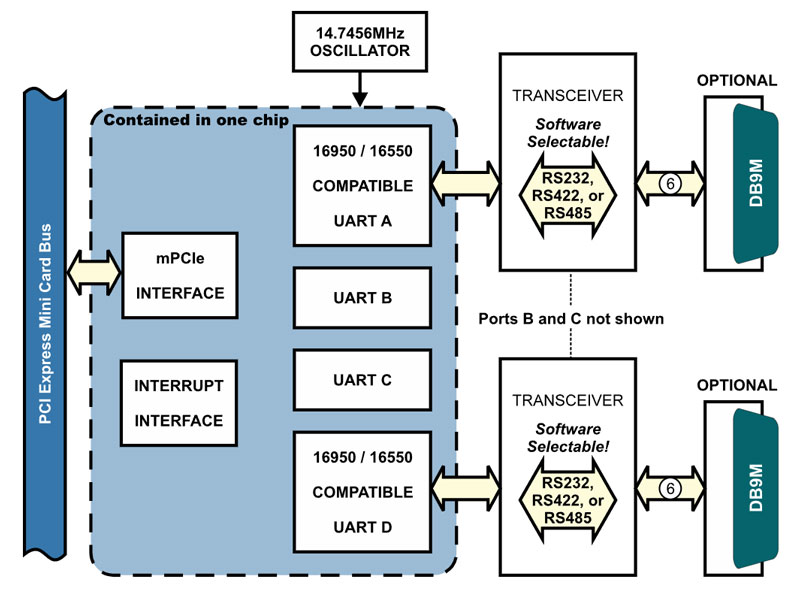

● Serial Ports: 4 (or 2) per-port software selectable RS422 & RS485, and/or RS232 depending on model
● UART: Quad 16C950 with 128-byte FIFO for each transmit & receive buffer
● Baud Rates: up to 921.6k baud in RS-232 up to 3MBaud in differential modes advanced-prescaler allows a wide variety of unusual baud rates to be achieved. Up to 10Mbps via custom crystal option.
● Character length: 5, 6, 7, 8 bits (contact factory for assistance with 9-bit data)
● Parity: Even, Odd, None, Mark, Space
● Stop Interval: 1, 1?, 2 bits
● Flow Control: RTS/CTS (RS-232 only), Xon/Xoff, None
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 1.6W (typical)
● ESD Protection: ±15kV on all signal pins (IEC 61000)
● Weight:6.4 grams
● Size: length: 50.95mm (2.006″); width: 30.00mm (1.181″)
● This product is designed to be in full compliance with CE requirements.
