● Multifunction I/O board with isolated digital I/O and serial communication
● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
● Four optically isolated digital inputs
● Four Form C electromechanical 1A relays
● wo serial ports, field selectable RS-232/422/485
● Small (4″ x 4″x 1.4″) rugged industrial enclosure
● Custom high-speed function driver
● PC/104 module size and mounting compatibility
● All required power drawn from USB port, no external power adapter required
● Expansion USB hub port connector
● Type B USB connector features industrial strength and high-retention design
● Now with Firmware 2.0 features!
- Onboard Watchdog Timer
- Configurable power-on defaults
- Digital input debouncing and latching
- Digital output Pulse Width Modulation (PWM) and Matrix Mapping
● FACTORY OPTIONS：
- Four digital input/output version (USB-IIRO-4DB)
- Two serial ports only version (USB-COM-2SM)
- External power from AC/DC adapter for high current capabilities
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- DIN rail mounting provision
- RoHS compliant product
- Support for Wind River VxWorks (call for ordering information)
● Home
● Portable
● Laptop
● Education
● Industrial Automation and Control
● Embedded OEM
● Point of Sale (POS) Retail
● Data Acquisition
● Serial Instrumentation
● Laboratory Research
● Remote Access

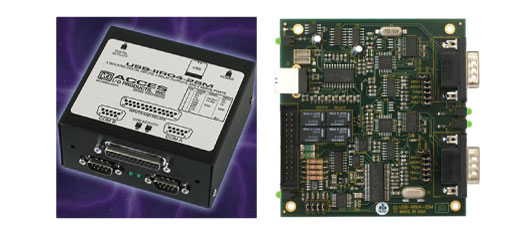

The USB-IIRO4-2SM is available with optional cable assemblies, screw termination boards and DIN rail mounting provisions.
