● High-speed USB 2.0 device, USB 3.0 and 1.1 compatible
● 16 optically isolated inputs
● 16 Form C electromechanical 1A relays
● Internal, removable screw terminal board for easy wiring
● Small (4″ x 4″x 1.4″) rugged industrial enclosure
● Custom high-speed function driver
● PC/104 module size and mounting compatibility
● Type B USB connector features industrial strength and high-retention design
● Now with Firmware 2.0 features!
- Onboard Watchdog Timer
- Configurable power-on defaults
- Digital input debouncing and latching
- Digital output Pulse Width Modulation (PWM) and Matrix Mapping
● FACTORY OPTIONS：
- Eight or four input/output versions available
- Input only and relay only versions
- External power from AC/DC adapter for high current capabilities
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- DIN rail mounting provision
- RoHS compliant product
- Support for Wind River VxWorks (call for ordering information)
● Home
● Portable
● Laptop
● Education
● Laboratory
● Industrial Automation
● Embedded OEM

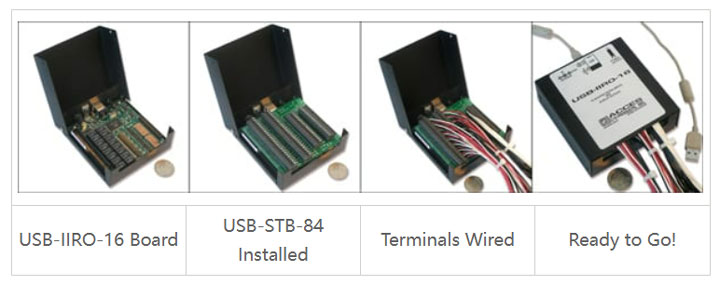

The USB-IIRO-16 is available with optional cable assemblies, screw termination boards, an external AC/DC power supply, and DIN rail mounting provisions.
