● High-speed USB 2.0 multifunction DAQ
● Sustained sampling speeds up to 1MHz
● 16-bit or 12-bit resolution A/D converter
● Flexible, software configured functionality
● 16 single-ended or 8 differential analog inputs
● 8 input ranges, 4 unipolar and 4 bipolar, channel-by-channel programmable
● Autocalibration and oversampling for real-time accurate data
● A/D starts via software, timer, or external trigger
● Two or four 16-bit analog outputs; 4kHz update rate
● 16 high-current digital I/O lines
● Alternate micro-fit embedded USB header connector

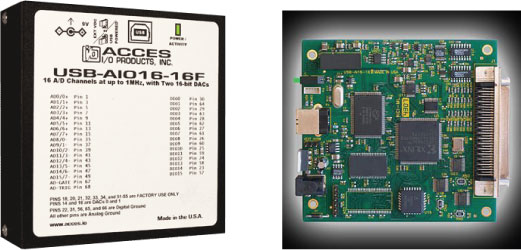

● USB/104 form-factor for OEM embedded applications
● Small, (4″ x 4″ x 1.25″) rugged industrial enclosure
● All required power drawn from USB port, no external power adapter required
● Industrial strength and high-retention Type B USB connector
● Onboard Watchdog Timer，Configurable power-on defaults
● Digital input debouncing and latching
● Digital output Pulse Width Modulation (PWM) and Matrix Mapping
● Industrial operating temperature (-40°C to +85°C)
● Single-ended current inputs (4-20mA or 10-50mA)，Voltage dividers per input
● Support for Wind River VxWorks (call for ordering information)
● Equipment monitoring
● Environmental measurements
● Embedded OEM
● Education/Laboratory
● Portable
● Industrial Automation
● Precision Measurement
● Analysis, Monitoring, and Control
● Available accessories include a wide variety of cables and screw terminal boards for quick and easy connectivity. Also, a DIN rail mounting provision is available.
