● Serial Standard: RS-232, RS-422, RS-485, RS-422/485

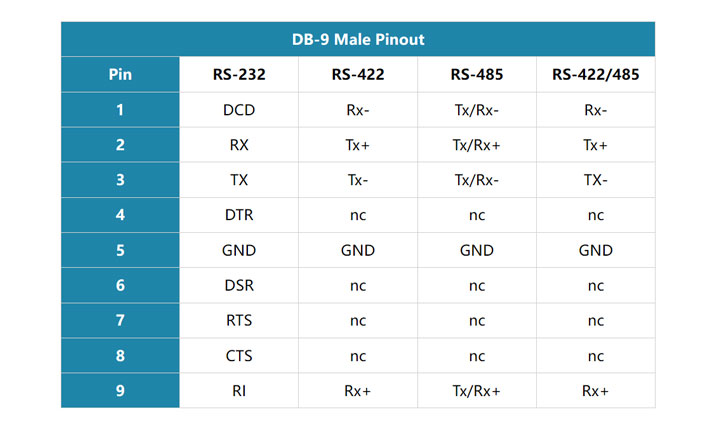

● Connector: DB-9, Male
● Communications Chip: Type FT232R UART with 128-byte receive/256-byte transmit FIFO buffers
● Character Length: 7 or 8 bits
● Parity: Even, odd, mark, space or none
● Stop Interval: 1 or 2 bits
● RS-232 Serial Data Rates: 300bps up to 1Mbps asynchronous
● RS-422 Serial Data Rates: 300bps up to 3Mbps asynchronous
● RS-485 Serial Data Rates: 300bps up to 3Mbps asynchronous
● Input/Output Voltage: ±25V (RS-232), ±14V (RS-422/485)
● Transmitter Output Drive: Up to 60mA, with thermal shutdown (RS-232)
● Receiver Input Sensitivity: ±200mV
● ESD Protection: ±15kV on all signal pins
● RTS Control: Automatic in RS-485 mode
● Bias: Transceiver and Receiver via 10KΩ (RS-422/485 models)
● Termination: 120Ω w/0.01μF capacitor (RS-422/485 Factory Option)
● USB Specification: Full-Speed USB 2.0 device, USB 3.0 and 1.1 compatible
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +85°C
● Humidity 5% to 95% , non-condensing
● Power Required: 5VDC at ~12mA with no load (~22mA loaded) USB Bus Powered (No external power supply required)
● Cable Length: 6 feet

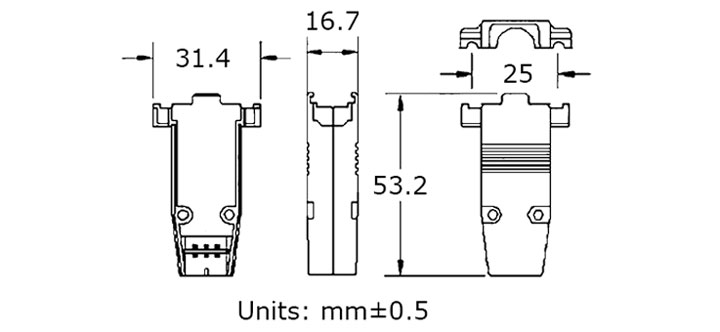

● Backshell Dimensions: 1.236″ x 0.657″ x 2.094″ (31.4mm x 16.7mm x 53.2mm)
● Approvals: RoHS
● This product is designed to be in full compliance with CE requirements.
