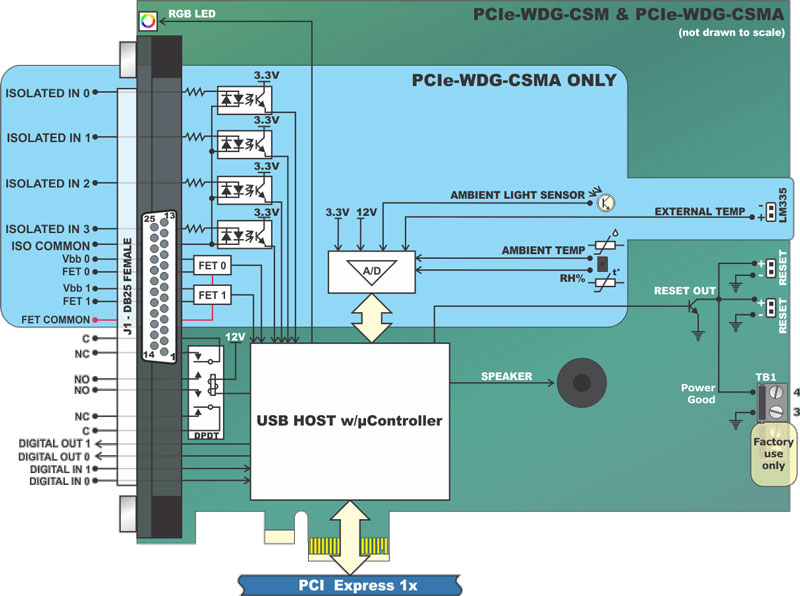

● PCI Express
● Pull-up resistors: 10k ohm
● 3.3V
● Input Low ≤ 0.8V, ≤1μA
● Input High ≥2.0V, ≤1μA
● Output Low ≤0.4v, ≤8mA
● Output High ≥2.4V, ≤8mA
● Contacts: Dual Form C (DPDT)
● Nominal Ratings: 1A, 30VDC, 0.5A 125VAC (resistive)
● Open Collector Transistor to ground
● Quantity: 4, PC isolated, sharing a common return
● Type: Opto-couplers
● Voltage Range: 3 to 31 VDC
● Isolation: 500V channel-to-ground
● Input Resistance: 1.8K ohms in series with opto coupler
● Quantity: 2, PC isolated, sharing a common return
● Output Type: High Side Power MOSFET Switch Protected against short circuit, over-temp., ESD, can drive inductive loads
● Voltage Range: 5-34VDC (customer supplied)
● Current Rating: 2A maximum
● Minimum load: Required
● Sensors (2)
- Ambient Temperature: -40°C to +125°C ±0.3 – 0.7% typical
- Relative Humidity: 0-100% RH, ±3% typical
● Analog Inputs (4)
● 3.3V from PC Supply
● 12V from PC Supply
● Ambient Light Sensor
● LM335 Temp Sensor
● Operating Temperature 0° to +70°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 0.8W (typical)
● Card Dimensions: 6.6 inches length; height 2.535 inches seated
● This product is designed to be in full compliance with CE requirements.
