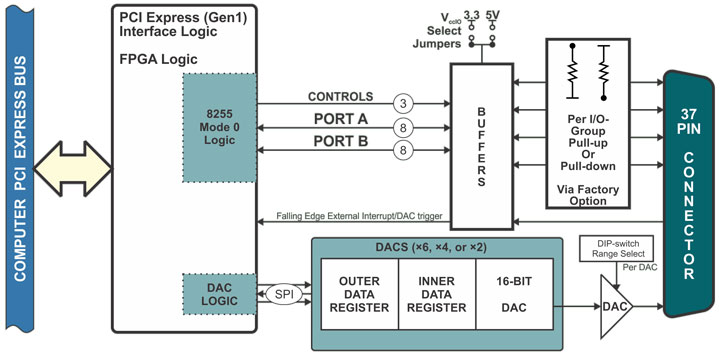

● PCI Express
● Channels: 16, 8
● Resolution: 16 or 12 bits
● Unipolar Ranges:0-2.5, 0-5, 0-10 VDC
● Bipolar Ranges:±2.5, ±5.0, ±10.0 VDC
● Current Range: 4-20 mA (with external excitation voltage of 8-36VDC)
● Output Drive: 5 mA maximum
● Output Resistance: Less than 0.1Ω
● Relative Accuracy: ±1LSb max, ±?LSB typical
● Diff.Linearity: ±?LSB integral non-linearity over rated temperature range
● Monotonicity: 16 bits over operating temp
● Settle time: 5 usec ?- to ?-span and ?- to ?-span, to ±2LSB
● Lines: 24; Ports A, B, CHi and CLo
● Type: 8255 compatible
● Pull-up/-down: 10k (pulled-up by default)
● Logic Levels: VCCIO jumper selectable
● VCCIO = 5V:
- Input Low: ≤1.5V @ ≤2μA
- Input High: ≥3.5V @ ≤2μA
- Output Low: ≤0.55V @ 32 mA
- Output High: ≥ 3.8V @ 32mA
● VCCIO = 3.3V
- Input Low: ≤0.8V @ ≤2μA
- Input High: ≥2.0V @ ≤2μA
- Output Low: ≤0.55V @ 24 mA
- Output High: ≥ 2.4V @ 24mA
● Operating Temperature 0° to +70°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Size: 6.6″ (168 mm) long
● VCCIO VDC at 500 mA is available on the 37-pin connector.
● This product is designed to be in full compliance with CE requirements.
