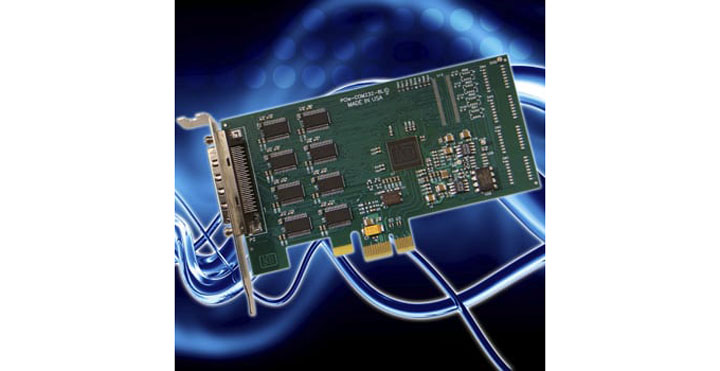

● Eight or four-port PCI Express RS-232 serial communication cards
● Low profile PCIe MD1 form factor, MD1 defines the shortest standard card length available
● High performance 16C950 class UARTs with 128-byte FIFO for each TX and RX
● Supports data communication speeds up to 921.6kbps (standard model 460.8kbps)
● ±15kV ESD protection on all signal pins
● Full modem control signals
● Software compatible with all operating systems
● Plug and Play, no jumpers to configure
● 3’ breakout cable included, terminating with industry standard DB9M connectors (no external breakout box required)
● FACTORY OPTIONS:
- Connector strengthening bracket for secure and fail-proof connections
- Extended temperature (-40°C to +85°C)
- High speed version up to 921.6kbps
- RoHS compliant version
- Support for Wind River VxWorks (call for ordering information)
- Remote wake-up enable
- Low profile bracket installed for small, embedded PCs
● Process Monitoring
● Manufacturing/Production Test
● Machine Control
● Monitoring and Control
● Security Systems, Energy Management
● Industrial Automation
● Factory Automation
● Laboratory Automation
● Embedded OEM
The card is supported for use in most operating systems and includes a free DOS, Linux (including macOS), and Windows XP -> 10, both 32 & 64 bit compatible software package. This package contains sample programs and source code in Visual Basic, Delphi, and Visual C++ for Windows. Also provided is a graphical setup program in Windows. Linux support includes installation files and basic samples for programming from user level via an open source kernel driver. Third party support includes a Windows standard DLL interface usable from the most popular application programs, and includes LabVIEW VIs. Embedded OS support includes Windows Xpe, WES7, vxWorks, etc.
