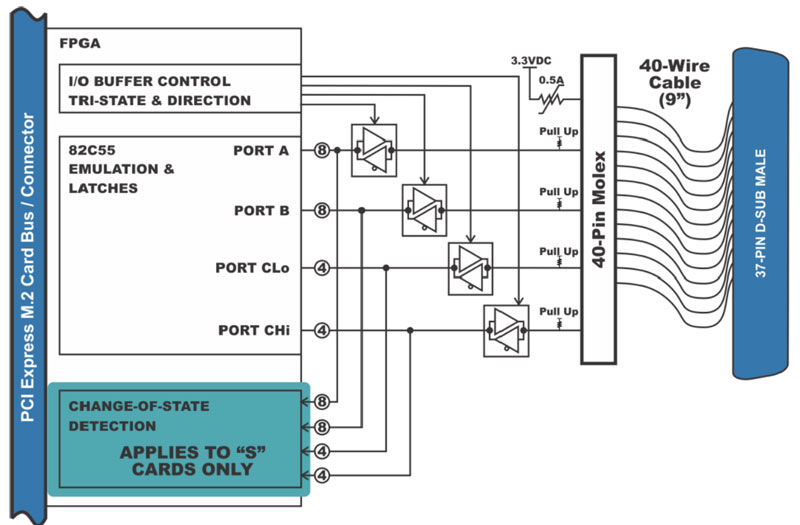

● M.2 2260/2280 with B & M key1.2
● Digital Bits: 24
● Compatibility: 8255 Mode 0
● Performance: 1 μs per 32-bit transaction max, ～3.5μs in Windows
● Digital Inputs
- Logic High: 2.0V to VCCIO (3.3VDC, 5VDC tolerant)
- Logic Low: 0V to 0.8V
● Digital Outputs (Standard Version)
- Logic High: 2.0V (min) 24mA source
- Logic Low: 0.55V (max) 24mA sink
- Power Output: +3.3 VDC via 0.5A polyfuse (resetting)
● TTL with user VCCIO Digital Outputs (-TTL option)
- 1.65V to 5.5V: At DB37M, via polyfuse
- Logic High: 3.8V (min) 32ma UVCCIO = 4.5V
- Logic Low: 0.55V (max) 32ma UVCCIO = 4.5V
● Operating Temperature 0° to +70°C, optional -40° to +85°C
● Storage Temperature -40° to +105°C
● Humidity 5% to 95% RH, without condensation
● Power required: +3.3VDC @ 300ma (typical)
● Weight:6.2 grams (plus 22.2g for the cable)
● Size: Length:80mm with breakaway to shorten to 60mm; Width: 22mm
● I/O connector:
- On-card: Molex 501190-4017 40-pin latching
- Mating: Molex 501189-4010
- On cable: Male, D-Sub Miniature, 37-pin
- Mating: Female, D-Sub Miniature, 37-pin
● This product is designed to be in full compliance with CE requirements.
