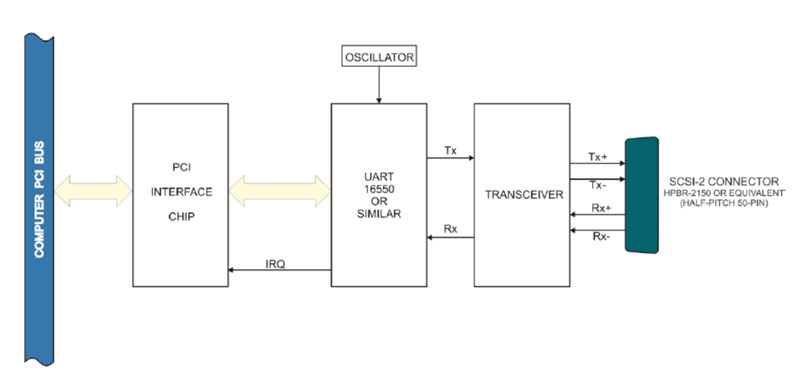

● PCI Bus
● I/O Connection: Via a 50-pin, shielded, SCSI-2 connector. There are 2 pins per port plus common grounds shared by pairs of ports for the RS-485 version, and 4 pins per port plus common grounds shared by pairs of ports for the RS-422 version.
● Cable: Breakout Cable from SCSI-2 Connector features one-touch-lock-latches, with Eight-DB9 connectors.
● Character Length: 5,6,7, or 8 bits.
● Parity: Even, odd, or none.
● Stop Interval: 1, 1.5, or 2 bits.
● Serial Data Rates: Up to 115,200 baud, asynchronous. A faster range of rates, up to 921,600, is achieved by jumper selection on the card prior to installation.
● Multidrop:
- LPCI-COM485-8: Compatible with RS-485 specifications. Up to 32 drivers and receivers allowed on line. Drivers/Receivers used are type SN75176B.
- LPCI-COM422-8: Compatible with RS-422 specifications. Up to 10 receivers allowed on line.
● Address: Continuously mappable within 0000 to FFFF (hex) range of PCI Bus range of addresses.
● Receiver Input Sensitivity: ±200 mV differential input.
● Common Mode Voltage Range: +12V to -7V
● Transmitter Output Drive Capability: 60 mA, with thermal shutdown.
● Operating Temperature Range: 0 to +60°C.
● Storage: -25 to +85°C
● Humidity: 0 to 90 percent (non-condensing)
● Power Required: +5VDC at 200 mA typical, 1300 mW total power consumption.
● Size: 6.6″ long (167.64mm) by 2.21″ tall (56.17mm) seated height.
● This product is designed to be in full compliance with CE requirements.
