● Ethernet 10/100 RJ45 connector for interfacing to CPU or network
● 16 optically isolated inputs (3V to 31V)
● 16 Form C electro-mechanical relays switch 1A
● DHCP or static IP assignment
● Internal, removable terminal board for easy wiring
● PC/104 module size and mounting compatibility
● Small (4″ x 4″x 1.7″) rugged industrial enclosure
● DC Jack and screw terminals for required external power
● FACTORY OPTIONS:
- Eight- and four- input/output versions
- Input-only and relay-only versions
- Economy “E” version without the screw terminal board
- OEM (board only) version with PC/104 mounting holes and PCB footprint for added flexibility in embedded applications
- Extended operating temperature (-40°C to +80°C)
- Wide input (7VDC to 30VDC) external power
- RoHS available
● Industrial Automation
● Embedded OEM
● Portable DAQ
● Laboratory
● Home Automation
● Kiosks

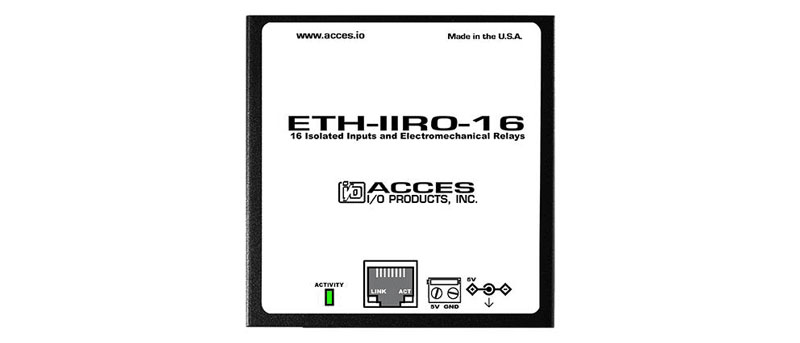

The ETH-IIRO-16 is available with optional cable assemblies, screw terminal boards, and a DIN rail mounting provision.
Because of Ethernet’s ubiquitous nature these boards are supported for use in all operating systems — including Windows, Linux, Unix, iOS, Android, — even Raspberry PI, etc. The software package includes free Linux and Windows software with sample programs and source code in C# and Delphi for Windows. Also provided is a graphical setup program in Windows and extensive Ethernet-packet level API documentation. Third party application support includes a Windows standard DLL API usable from most popular application programs. Embedded OS support includes Windows Embedded Standard, and all applications, operating systems, and PLCs and all other devices capable of TCP/IP communication.
