● Ethernet 10/100 RJ45 connector for interfacing to CPU or network
● 48 or 24 channel high-current TTL digital I/O lines
● Compatible with industry standard I/O racks such as Grayhill, Opto 22, Western Reserve Controls, etc.
● Eight-bit ports software selectable for inputs or outputs
● All 48 digital I/O lines buffered with 32 mA source / 64mA sink current capabilities
● Jumper selectable I/O pulled up to 5V (via 10KΩ) for contact monitoring, pulled down to ground or floating
● DHCP or static IP assignment
● 5VDC regulated external power supply included
● Resettable 0.5A fused +5VDC output per I/O connector
● Standard 50-pin IDC-type shrouded connectors with key

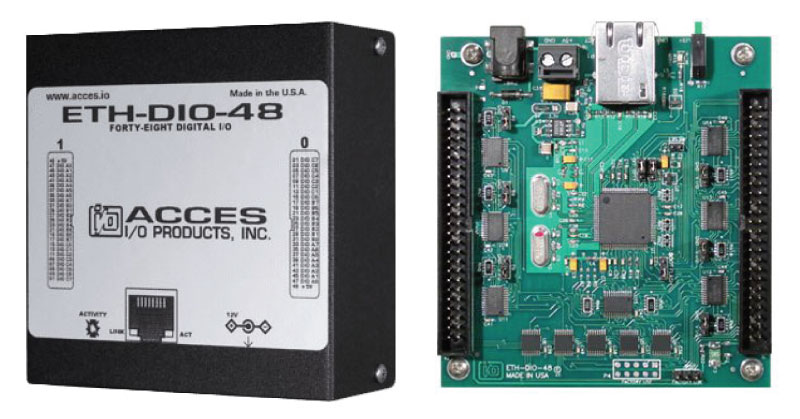

● Small, (4″x4″x1.7″) rugged, steel industrial enclosure
● RoHS Standard
● FACTORY OPTIONS:
- Low-voltage (LVTTL) for 3.3V applications
- OEM version (board only), features PC/104 size and mounting compatibility
- Order with our IOB-48 for 48 channels of output isolation
- Extended Temperature Operation (-40°C to +85°C)
● Industrial Automation
● Embedded OEM
● Portable DAQ
● Laboratory
● Home Automation
● Kiosks
● Direct connect spring-cage terminal boards brings out all DIO signals (STB-DIO-48ETH).
● Additional accessories include flat ribbon cables and DIN-rail mountable screw terminal boards for remote wiring and installation.
● For isolated inputs and outputs, we have 2 types of accessories:
- Our low cost IIB-24 provides optically isolated inputs to any of our 50-pin connectors via one of our cables.
- Our IOB-48 has High-Side Power MOSFET outputs that mate directly to the board only (-OEM) versions of our products.
Because of Ethernet’s ubiquitous nature, these boards are supported for use in all operating systems — including Windows, Linux, Unix, iOS, Android, — even Raspberry PI, etc. The software package includes a free Linux and Windows software package with sample programs and source code in C#, Delphi, Visual Basic, and Visual C++ for Windows. Also provided is a graphical setup program in Windows and extensive ethernet-packet level API documentation. Third party application support includes a Windows standard DLL interface usable from the most popular application programs. Embedded OS support includes Windows Embedded Standard.
