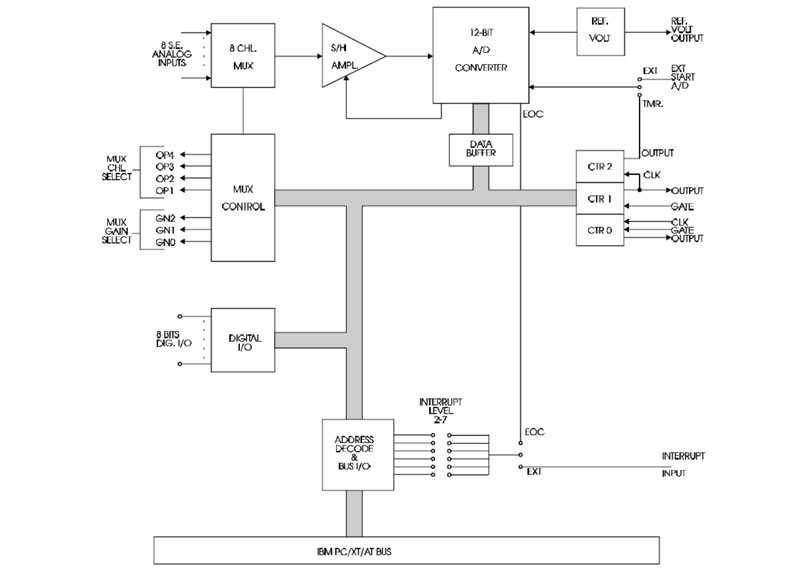

● ISA Bus
● No. of Channels: Eight single-ended inputs w/common ground.
● Voltage Range: Jumper selectable ±10 VDC, ±5 VDC, or 0-10 VDC.
● Overvoltage Protection: ±30 VDC.
● Input Impedance: 10 Megohm or 125 nA at 25°C.
● Accuracy: ±0.02% of reading ±1 LSB.
● Linearity: ±1 LSB.
● Resolution: 12 bit binary.
● Temperature Coefficient: ±10 μV per °C zero stability. ±25 μV per °C gain stability.
● Common Mode Rejection: (When used with AIM-16) 90 db when gain = 1; 125 db when gain = 100
● A/D Trigger Source: Program command, programmable timer, or external trigger.
● Throughput: 40,000 conversions/second max.
● Inputs
- Logic Low: 0 to 0.4V at 8 mA sink.
- Logic High: 2.4 to 5.0V at 0.4 mA source.
● Outputs (DIO 0 thru DIO 7)
- Logic Low: 0 to 0.4V at 24 mA sink.
- Logic High: 2.8 to 5.0V at 2.6 mA source.
● Outputs (GN0 thru GN2 and OP0 thru OP4)
- Logic Low: 0 to 0.4V at 8 mA sink.
- Logic High: 2.4 to 5.0V at 0.4 mA source.
● 10.0 VDC ±0.10 VDC at up to 220 mA.
● Type: 8254 programmable interval timer, three 16-bit counters.
● Drive Capability: 5 LSTTL loads (2.2 mA at 0.45 VDC).
● Input Load (Gate and Clock): ±10 μA, TTL/CMOS compatible.
● Input Clock Frequency:10 MHz max.
● Active Count Edge:Negative edge.
● Clock Pulse Width: 50 nSec high / 50 nSec low, min.
● Level: Jumper selectable, levels 2-7.
● Enable/Disable: Via software.
● Source: End of conversion or user application.
● Operating Temperature Range: 0° to 60°C.
● Storage Temperature Range: -40° to +100°C.
● Humidity: 0 to 90% RH, non-condensing.
● Size: 9.0 inches long (178mm)
● +5 VDC at 390 mA.
● +12 VDC at l0 mA.
● -12 VDC at l0 mA.
● This product is designed to be in full compliance with CE requirements.
