PC/104 架構帶隔離Digital Inputs/Outputs模塊系列產品

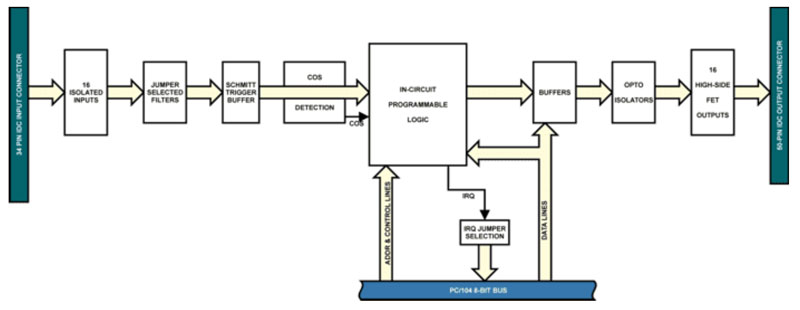

104-IDIO-16 產品技術規格
PC Interface

● PC/104

Isolated Digital Inputs

● Number of inputs: Sixteen

● Type: Non-polarized, optically isolated from each other and from the computer. (CMOS compatible)

● Voltage Range: 3 to 31 DC or AC (40 to 10000 Hz)

● Isolation: 500V*(see manual) channel-to-ground or channel-to channel

● Input Resistance: 1.8K Ohms in series with opto coupler

● Response Time: 4.7 mSec w/filter, 10 μSec w/o filter (typical)

● Interrupts: Software controlled with jumper IRQ selection (models 104-IDIO-16 and 104-IDIO-8)

Isolated Digital Outputs

● Number of outputs: Sixteen Solid State FETs (off @ power up).

● Output Type: High Side Power MOS FET Switch.

● Protection Features: Protected against short circuit, over-temperature, ESD, can drive inductive loads.

● Voltage Range: 5-34VDC recommended (user supplied) for continuous use, 40VDC absolute max.

● Current Rating: 2A maximum.

● Turn-on time: 90usec

● Turn-off time: 110usec

Interrupts

● Interrupts: Software controlled with jumper IRQ selection (models 104-IDIO-16 and 104-IDIO-8)

Environmental

● Power Required: +5VDC @ 0.150A (all FETs ON)

● Operating temperature: 0°C to +70°C, optionally -40°C to +85°C available

● Storage temperature: -50° to +120°C

Regulatory Compliance

● This product is designed to be in full compliance with CE requirements.
