● 8, 4, or 2 independent asynchronous serial COM ports
● Field selectable RS-422 and RS-485, independent for each port
● Auto-RTS feature makes half-duplex RS-485 communications effortless
● Speeds up to 921.6K
● Fixed bias and jumper selectable termination provided on each transmit and receive channel simplifies cabling
● Programmable individual non-volatile base addresses and IRQs simplifies installation
● Low power required: +5VDC at 80 mA typical
● Operates as a standard COM port in all operating systems
● 16850 UARTs with 128-byte FIFO
● Extended operating temperature (-40°C to +85°C)
● RoHS Available. Please contact us for ordering information
● Industrial Equipment Control
● Waveform/Audio Synthesis
● Stimulus-Response
● Test

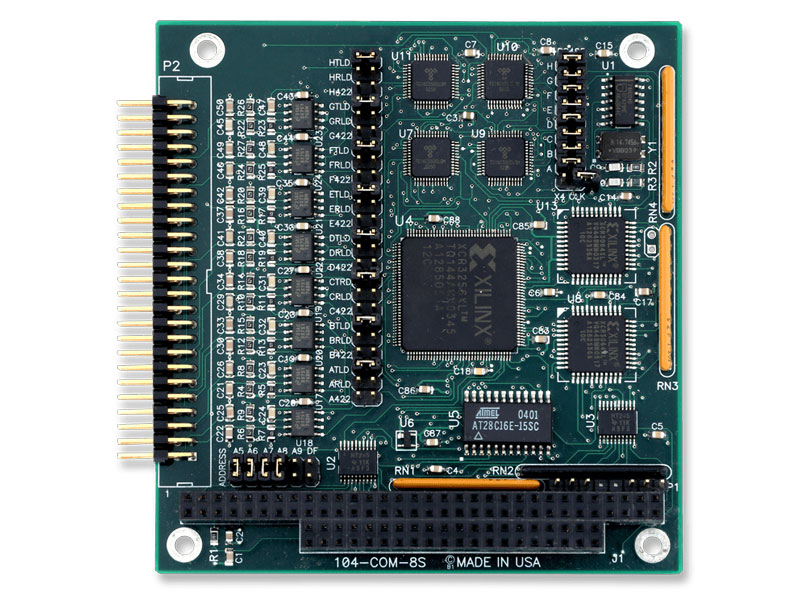

The 104-COM-8S Series is supported by all operating systems and include a free DOS, Linux and XP -> 10, both 32 & 64 bit compatible software package. This includes sample programs and source code in “C” and Pascal for DOS, and Visual Basic, Delphi, and Visual C++ for Windows. Also included is a graphical setup program in Windows. An easy-to-use Windows terminal program simplifies verification of proper operation.
