PC/104總線多功能AD/DA模塊 Multifunction Analog Input/Output系列產品

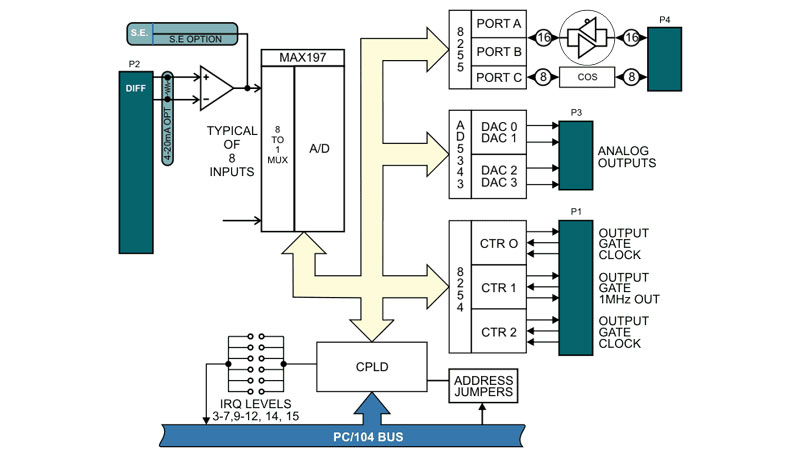

104-AIO12-8 產品技術規格
PC Interface

● PC/104-Based

Analog Inputs

● No. of Channels: Eight true differential inputs, or eight single-ended inputs optional

● Programmable Ranges: 0-5V, 0-10V, ±5V, ±10V, (4-20mA as a factory option)

● Conversion Frequency: 100K Samples per Second

● Resolution: 12-Bit

● Differential Input Impedance: 2Meg Ohms w/pre-amp

● Preamplifier gain: 1 standard, Optional gains up to 200 upon request

● Reference Output Voltage: 4.096V ±0.02V

● Common Mode Voltage: ±200V

● Common Mode Rejection Ratio: 86dB typical

● Integral Nonlinearity: 1 LSB maximum, Monotonic

● Full Power-Down Mode: 1μA maximum

● Standby Power-Down Mode: 400μA maximum

● Accuracy: 0.2% of full scale

● Gain Temperature Coefficient: 6 ppm / °C typical, bipolar; 8ppm/ °C typical, unipolar

● Noise levels: ±1 LSB typical

● A/D triggering method: Software selectable: programmable timer, program command

Analog Outputs

● Channels: 4

● Resolution: 12 bit

● Voltage Ranges: 0-5V, 0-10V, ±5V, ±10V

● Conversion Frequency: 100K Conversions per second

● Output Drive Capability: 3 mA per channel

● Power-Down Mode Current Draw: 1μA, maximum

● Relative Accuracy: ±2 LSB, typical

● Trigger Source(s): Software selectable: programmable timer, program command

Digital Inputs/Outputs

● Programmable Peripheral Int.: 82C55A

● Channels: 24, pulled up to 5V via 10K (or pulled down to ground factory option)

● Buffered Channels: 16 (ports A & B)

● Input Voltage: Logic low: -0.03V min, 0.8V max;

● Logic High: 2.2V min, 5.8V max

● Input Current: ±1uA Max

● Output Voltage:

- Logic low: 0.0V min, 0.4V max

- Logic High: 3.7V min, 5.0V max

● Output Current:

- Ports A and B:Logic low: 64mA Sink;Logic High: 32mA Source

- Port C:Logic low: 2.5mA Sink;Logic High: 2.5mA Source

● Modes supported: Mode 0 (1 and 2 are factory options)

● Change of State Detection 8 inputs (port C)

Counter/Timer

● Peripheral Interface Timer: Type 82C54

● Counters 3 x 16-Bit down counters

● Clock Frequency Output: 1Mhz

● Inputs/Outputs Fully Buffered

● Native Modes: Pulse on terminal count, retriggerable one-shot, rate generator, square wave, software triggered strobe, hardware triggered strobe.

● Software Support: Event Counter, Frequency Output, Frequency and Pulse Measurement

Environmental

● Power Required (using ±12V and +5V)

- +12VDC: 30 mA typical

- -12VDC: 30 mA typical

- +5VDC: 40 mA typical

● Power Required (using only +5V, with the optional DC/DC Converter):+5VDC: 240 mA

● Operating Temp: 0°C to +70°C standard, optional -40°C to +85°C

● Interrupt Requests: Eleven channels, IRQ 3-7, 9-12, 14, 15

● Interrupt Status Register: Indicates source(s) of interrupt

● Interrupt Enable/Disable: Software Controlled

Regulatory Compliance

● This product is designed to be in full compliance with CE requirements.
